Sallen-Key High Pass Butterworth Filter Calculator

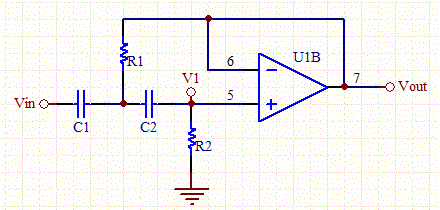

Sallen-Key Filter Stage

This calculator calculates the capacitor values for a unity gain Sallen-Key high pass Butterworth filter. The Sallen-Key filter is a simple active filter based on op-amps stages, which is ideal for filtering audio frequencies.

For a derivation of the design equations see this link:

High Pass Sallen-Key Design Equations

Quadradic: S^2+As+B.

Design equations:

R1= A/(4*C*PI*f)

R2= 1/(A*C*PI*f)


If normalized then Wo=1 and Q= 1/A. (See the design equation page for R1 and R2)

To use this calculator, select a resistance, the number of poles, and the cut-off frequency.

3dB Frequency (Hz)
Capacitor (C1,C2=C) (uF)
