LED Indicator for Relay

See our other Circuits.

This circuit indicates whether a relay is energized or not with two LEDs: an LED to indicate the normally open (NO) position, and another to indicate the normally closed (NC) position.

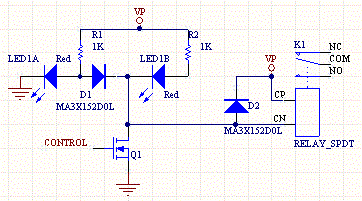

 Schematic Led Indicator For Relay
LED Indicator for Relay Schematic
