Energy Harvester Circuit

See our other Circuits.

This circuit will harvest energy from any small source such as a piezo electric buzzer element, speaker, solar cell.  It saves the energy to a 0.47 supper cap and boosts it to 3.3V using the Maxim chip.  The diode bridge is composted of low forward voltage BAT54 diodes.  The Max1675 has a quiescent current of less than 16uA. The zener protects the cap from over voltage.





 Voltage Controlled Voltage Source Schematic

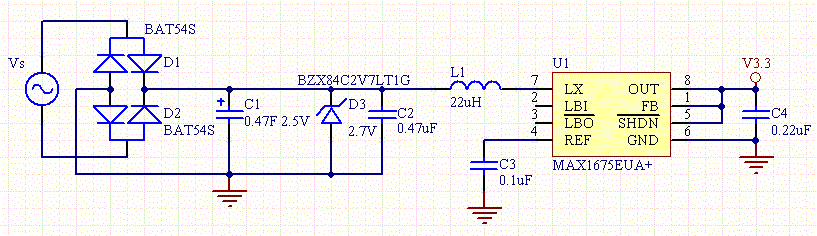

Energy Harvester Schematic



Do you need help with an electronics design?  Daycounter provides contract electronics design services. Contact us to give you a quote on your electronics design project.
